Real-time simulator

INCHRON markets two cutting-edge products: chronSIM and chronVAL aimed at engineers designing and testing embedded software. INCHRON makes the impossible possible. For the first time, engineers can detect and eliminate real-time bugs as they design the software.

chronSIM is the central INCHRON tool for design, visualization, quality testing and analysis of embedded systems. It allows your engineers to perform the most powerful real-time simulation, analysis and in-depth forecast of your embedded software's dynamic performance.

chronSIM empowers you to design the most suitable soft- and hardware architecture as well as the perfect task mapping onto the processors. You also create the optimal task structure, interrupt service routines scheme and scheduling procedure to maximize data throughput and to comply with all specified response times.

chronSIM uncovers and visualizes hidden dynamic operating sequences using state of the art UML based diagrams (sequence, task, state, stack, processor load, function nesting, etc.)

chronSIM provides you with accurate simulations of the response of your embedded systems to internal and external stimuli through events, analog and digital signals. You can additionally carry out Monte Carlo simulations and stress tests through random variations of the event times.

chronSIM simulates your system without requiring costly hardware. System bottlenecks, stack overflows, real-time errors - you will be able to nip them in the bud.

Do you know the dynamic behavior of your system?

Figure it out with chronSIM

Select your view: single-core, multi-core, multi-processor, buses or distributed systems with several processors
Identify performance and timing bottlenecks
Determine latencies of event chains (end-to-end timing from sensor to actuator)
Understand the timing interaction between the software, peripherals and buses
Find overload situations
Follow event chains from sensor to actuator
Investigate critical scheduling effects of tasks and ISRs
Understand the root causes of real-time errors

Understanding the dynamic behavior is the key factor for success!

chronSIM the essential and vital tool for

System and software architects
Safety engineers
Timing engineers
Test engineers

chronSIM the best tool to

Design robust, scalable and efficient dynamic system and software architectures
Understand the dynamic system behavior
Find the most suitable mapping of software components to processors, cores, tasks or ISRs
Determine the best fitting scheduling scheme
Secure overload situations
Design safety margin to avoid butterfly effects
Ensure robustness via stress tests and sensitive analysis
Target-oriented architecture optimization with what-if analysis
Clarify and refine real-time requirements. This is especially important in collaboration projects with Tier-1, Tier-2 and OEM
Make efficient feasibility study during tender phase or after change requests
Reduce the risk to fail already at the beginning

In a nutshell, save time, save money and relax with your best design!

chronSIM key features

Fast evaluation of new features via virtual integration
Considers clock drift between ECUs
Monitors real-time requirements online during simulation
Extensive statistical analysis (e.g. event chain latencies, response time distribution)
Functional correct simulation of source code models, considers data dependent execution times
Distributions of execution times and stimulations
Simple parameterization of complex stimuli

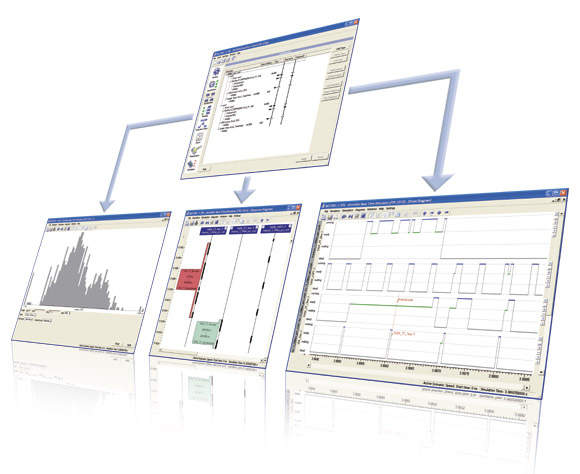

In-depth understanding of dynamic system behavior and root causes via timing diagrams (e.g. load, taskstate, sequence, gantt, call nesting) and overall statistical results (e.g. histograms and boxplots)
Supports different communication buses like FlexRay, CAN, Ethernet and AFDX
Modeling of hierarchical scheduling methods
Supports multi-core scheduling (BMP and SMP)
Scales from budget oriented models to in-depth analysis of source code
Report generation in HTML and CSV with fully customizable templates
Batch mode for workflow automation
Import and export of requirement from tools like IBM Rational DOORS

chronSIM supports widely used standards.

Tool-Suite:

Understand and evaluate the dynamic behavior of your system with chronSIM!

Sample Report

Automatically generated html-Report of an engine control unit (ECU)
